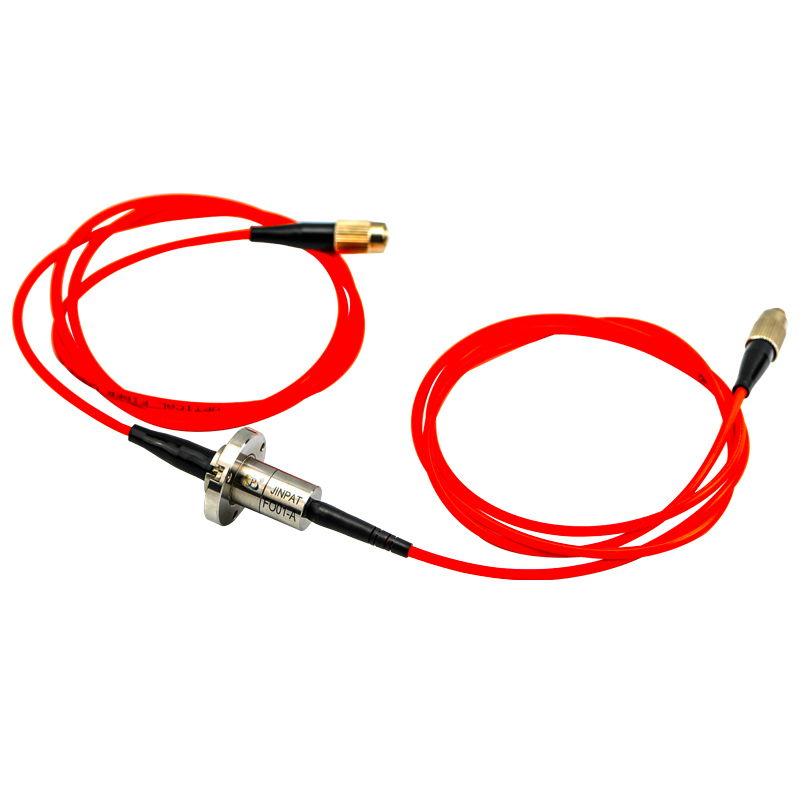

IP68 Fiber Optic Rotary Joint 2000 rpm for Harsh Environments

  • IP68 Fiber Optic Rotary Joint 2000 rpm for Harsh Environments
Place of Origin Guangdong, China
Μάρκα JINPAT
Model Number LPFO-01E
Minimum Order Quantity 1
Τιμή $338

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Channel Number 1 Wavelength Range 650-1650nm
Insertion Loss <2dB Working Speed 2000 rpm
Fiber Types SM or MM Connector Types FC/SC/ST/LC(PC or APC)
Life Cycle >200 million revolutions Insertion Loss Ripple <0.5dB
Weight 40g Return Loss ≥40dB
Max Optical Power 23dBm Maximum Speed 2000rpm or More
Working Temperature -45~+75℃ Storage Temperature -55~+85℃
IP Rating IP65 or IP68
Επισημαίνω

IP68 fiber optic rotary joint

,

high-speed 2000 rpm rotary joint

,

harsh environment fiber optic joint
Περιγραφή προϊόντων
IP68 Fiber Optic Slip Ring Rotary Joint with 2000 rpm Working Speed for Harsh Environments
Key Attributes
Type Accessories
Channel Number 1
Wavelength Range 650-1650nm
Insertion Loss <2dB
Working Speed 2000 rpm
Style Fiber optic rotary joint
Product Overview

The LPFO-01E slip ring uses optic fiber for high-capacity data transmission between stationary and rotating parts. Featuring extremely low insertion loss and high return loss, this contact-free solution enables high-bandwidth signal transmission without electromagnetic interference.

Key Features
  • Built-in quick plug interface
  • Low insertion loss with high return loss
  • Long-distance transmission without leakage or EMI
  • High bandwidth capacity
  • Contact-free operation eliminates friction
  • Compact and lightweight design
  • Multi-channel options available
  • Multiple package configurations
  • IP68-rated water and dust protection
  • Vibration and shock resistant
Product Advantages
  • Extended service life
  • Cost-effective solution
  • Flexible fiber wire terminal connections
  • Fast delivery options
  • Custom engineering solutions
Technical Specifications
Fiber types SM or MM
Connector types FC/SC/ST/LC(PC or APC)
Channel number 1
Estimated life cycle >200 million revolutions
Wavelength range SM:1270-1650nm
MM:650-1300nm
Vibration MIL-STD-167-1A
Insertion loss <2dB
Mechanical shock MIL-STD-810G
IP rating IP65 or IP68
Weight (approx) 40g (No tail cable and connection included)
IP68 Fiber Optic Rotary Joint 2000 rpm for Harsh Environments 0
Primary Applications
  • Robotics systems
  • Turrets and rotating platforms
  • Radar systems
  • Seafloor operation equipment
  • Material conveying systems
Product Images
IP68 Fiber Optic Rotary Joint 2000 rpm for Harsh Environments 1
Manufacturer Advantages
  • 12,000+ square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Global partnerships with leading enterprises and distributors
  • 10,000+ successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of R&D and production experience
  • Custom engineering solutions available
  • Fast delivery capabilities
Visit JINPAT Electronics on Alibaba
IP68 Fiber Optic Rotary Joint 2000 rpm for Harsh Environments 2
Frequently Asked Questions
What is a slip ring?

An electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires in rotating systems.

What slip ring types are available?
  • Electrical slip rings (capsule, through-bore, miniature)
  • Signal slip rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom solutions
  • Large volume series
How to select the right slip ring?

Consider your application's operating parameters including circuits, voltage/amperage, speed, and mounting requirements. Contact our engineers for custom solutions.
