Fiber Optic Rotary Joint 1 Channel 650-1650nm IP68 2000 RPM

  • Fiber Optic Rotary Joint 1 Channel 650-1650nm IP68 2000 RPM
Place of Origin Guangdong, China
Μάρκα JINPAT
Model Number LPFO-01A
Minimum Order Quantity 1
Τιμή $190

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Channel Number 1 Wavelength Range 650-1650nm
Insertion Loss <2dB Working Speed 2000 RPM
Working Temperature -40~+85℃ Housing Material Stainless Steel
Package Type Pigtail on both ends Fiber Type single mode or multimode
Fiber Sheath Type 900um, 2mm, 3mm Connector Type ST, FC, LC, SC (PC / APC)
Storage Temperature -50~+85℃ Vibration Resistance MIL-STD-167-1A
Shock Resistance MIL-STD-810G Protection Grade IP68
Expected Life 200-400 million turns
Επισημαίνω

1 channel fiber optic rotary joint

,

IP68 fiber optic rotary joint

,

650-1650nm fiber optic rotary joint
Περιγραφή προϊόντων
Fiber Optic Rotary Joint - LPFO Series
High-performance signal slip ring with IP68 protection and 2000 rpm working speed

Designed for cardiovascular detector (OCT) applications, this fiber optic rotary joint features low insertion loss and high-speed data transmission between stationary and rotating parts.

Product Attributes
Type Accessories
Channel Number 1
Wavelength Range 650-1650nm
Insertion Loss <2dB
Working Speed 500 rpm
Working Temperature -55~+85℃
Style Fiber optic rotary joint
Product Description

The LPFO series fiber optic rotary joints from JINPAT are engineered for reliable data transmission in rotating systems. These precision components feature:

Key Features
  • Built-in interface supports quick plug-in connection
  • Low insertion loss with high return loss
  • EMI-free long-distance signal transmission
  • High bandwidth capability
  • Contactless, friction-free operation
  • Compact and lightweight design
  • Multi-channel options available
  • Multiple package configurations
  • IP68 protection against water and dust
  • Vibration and shock resistant
Product Advantages
  • Extended service life (200-400 million rotations)
  • Cost-effective solution
  • Flexible fiber wire terminal connections
  • Fast delivery options
  • Custom solutions available
Technical Specifications
Wavelength Range 650-1650 nm
Insertion Loss <2dB
Insertion Loss Variation <±0.25dB (<±0.15dB normal)
Return Loss (single mode) >40dB (>45dB normal); >55dB
Maximum Working Speed 2000 RPM
Housing Material Stainless Steel
Package Type Pigtail on both ends
Fiber Type Single mode or multimode
Fiber Sheath Type 900um, 2mm, 3mm
Connector Type ST, FC, LC, SC (PC / APC)
Storage Temperature -50~+85℃
Working Temperature -40~+85℃
Vibration Resistance MIL-STD-167-1A
Shock Resistance MIL-STD-810G
Protection Grade IP68
Expected Life 200-400 million turns
Applications
  • Satellite ground stations
  • Air traffic control radar systems
  • Military radar installations
  • Video surveillance systems
  • ECS (Environmental Control Systems)
Product Images

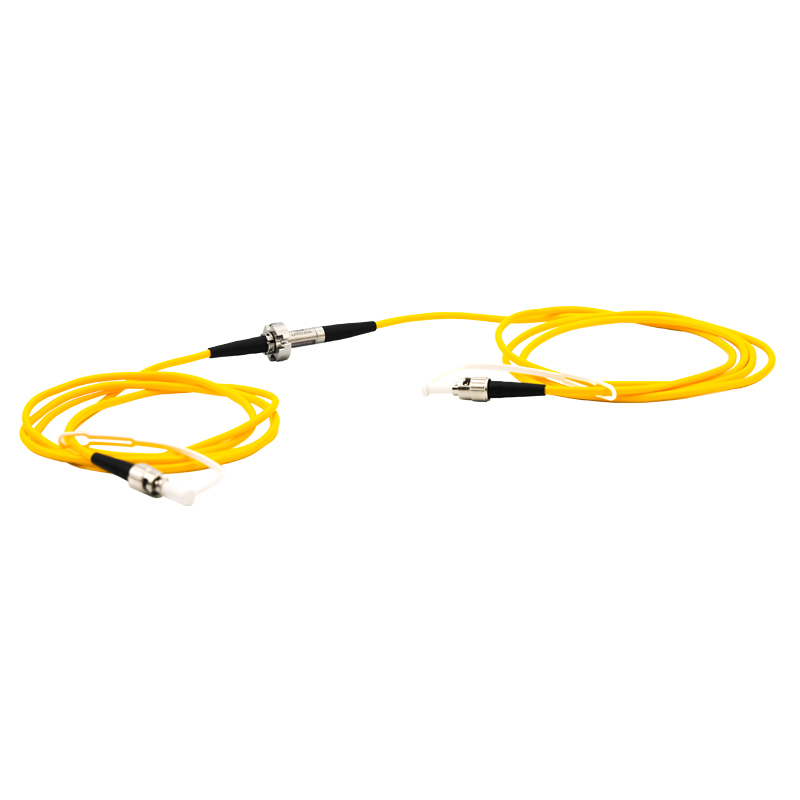

Fiber Optic Rotary Joint 1 Channel 650-1650nm IP68 2000 RPM 0
Fiber Optic Rotary Joint 1 Channel 650-1650nm IP68 2000 RPM 1
About JINPAT Electronics

Founded in 1996, JINPAT Electronics is a leading manufacturer of industrial slip rings with:

  • 12,000+ square meter production facility with 500+ employees
  • 69 patents and "National High and New Technology" recognition
  • 20+ years of R&D and manufacturing experience
  • 10,000+ successful designs for civil, military, and industrial applications
  • Global partnerships with renowned enterprises
  • ISO9001:2008/ISO14001:2015 certified quality management
  • Fast delivery and custom solutions

Visit JINPAT Electronics

Fiber Optic Rotary Joint 1 Channel 650-1650nm IP68 2000 RPM 2
Frequently Asked Questions
What is a slip ring?

A slip ring is an electromechanical device that enables power and signal transmission between stationary and rotating structures, eliminating damage-prone dangling wires in rotating systems.

What slip rings do we offer?
  • Electrical slip rings (capsule, through-bore, miniature)
  • Signal slip rings (USB, fiber optic, high frequency)
  • Pneumatic/Hydraulic rotary unions
  • Custom slip ring solutions
  • Large volume series
How to choose a slip ring?

Selection requires details about your application's circuits, voltage/current requirements, operating speed, and mounting configuration. Our engineers can assist with custom solutions.

Do you offer custom slip rings?

Yes, our engineering team develops tailored solutions for specific application requirements. Contact us to discuss your needs.
