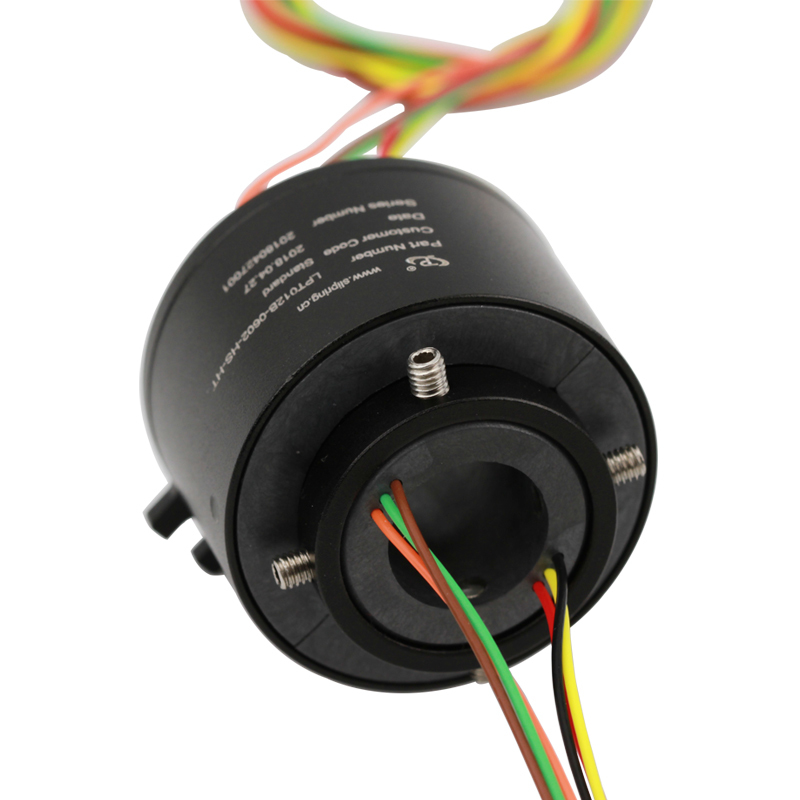

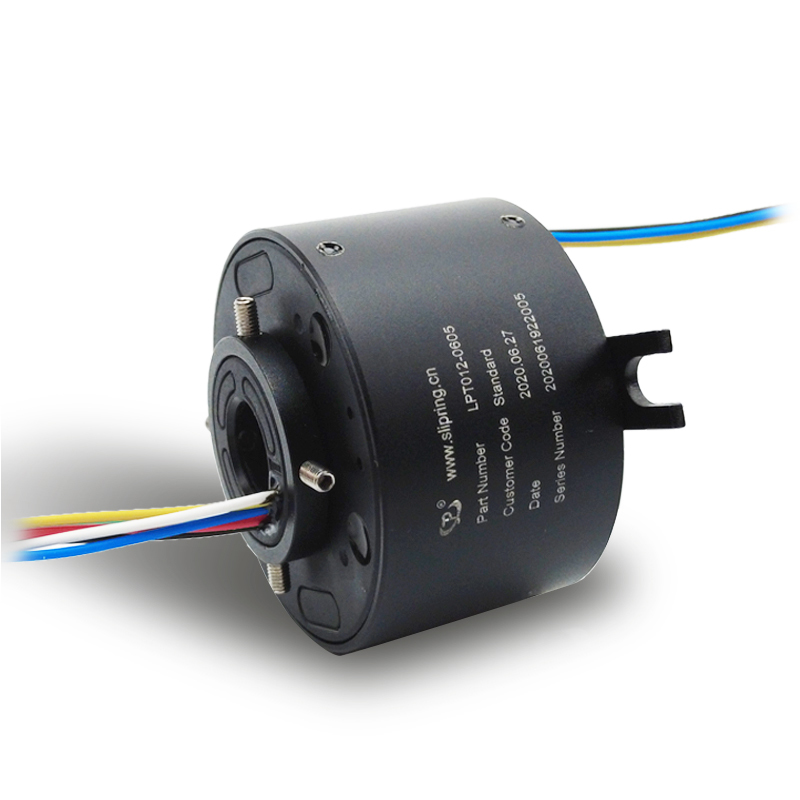

12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts

  • 12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts
  • 12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts
Place of Origin Guangdong, China
Μάρκα JINPAT
Model Number LPT012-0605
Minimum Order Quantity 1
Τιμή $64.70-78

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Bore Size 12.7mm Circuits 6 circuit
Current Rating 5A per circuit Operating Speed 0-400rpm
Working Humidity 60%RH or higher Contact Material Precious metal
Voltage Rating 380VAC/DC or higher Protection Level IP44 or higher
Dielectric Strength ≥800V@50Hz between each circuit Insulation Resistance 50MΩ@ 500VDC
Electrical Noise 30mΩ Min Lead Wire Length 300mm (11.811inch)
Housing Material Aluminum alloy Torque ≤9.25 g*m
Working Temperature -20℃~ +60℃
Επισημαίνω

12.7mm through hole slip ring

,

6 circuit slip ring with precious metal contacts

,

5A through hole slip ring
Περιγραφή προϊόντων
Small Through Hole Slip Ring - 12.7mm Bore Size, 6 Wire, 5A Precious Metal Contacts
Product Attributes
Attribute Value
Type Electronic Accessories
Circuits 6 circuit 2A per ring (1-24 circuits custom optional)
Operating Speed 0-400rpm
Working Humidity 60%RH or higher
Contact Material Precious metal
Voltage Rating 380VAC/DC or higher
Protection IP44 or higher
Product Description

The LPT series through-bore slip rings feature a center hole that can accommodate drive shafts or gas-liquid passages, with optional integration of high frequency, fiber, encoder, waveguide, gas and liquid joints. Advanced fiber brush technology ensures reliable contact with minimal friction.

Bargain Price Only in Alibaba

Key Features
  • Transmits both analog and digital signals
  • Mixed transmission of power and signals including:
    • Ethernet (10Mbps/100Mbps/1000Mbps)
    • Industrial Ethernet (EtherNet, EtherCAT, ProfiNet, Powerlink, SercosIII/IP)
    • HD video (SDI, LVDS)
    • Serial communication (RS232, RS485, RS422)
    • USB2.0
    • Industrial Fieldbus (CANBus, ProfiBus, InterBus, CC-Link, DeviceNet)
    • Sensor signals (thermal resistance, thermocouple, strain gauge)
  • Long service life with maintenance-free operation
  • Easy installation
Applications
  • Industrial automation equipment
  • Medical equipment
  • Wind power equipment
  • Test equipment
  • Exhibition and display equipment
  • Robotics
  • Turntable equipment
  • Amusement equipment
  • High-speed railway equipment
  • Packaging machinery
  • Ship offshore equipment
  • Construction machinery
Technical Specifications
Circuits 12 circuits
Operating Speed 0-300rpm
Working Temperature -20℃ to +60℃
Working Humidity 60%RH or higher
Electrical Specifications
Voltage Rating 380VAC/DC or higher
Current Rating 5A per circuit
Dielectric Strength ≥800V@50Hz between each circuit
Insulation Resistance 50MΩ@ 500VDC
Electrical Noise 30mΩ Min
Mechanical Specifications
Contact Material Precious metal
Lead Wire Length Standard 300mm (11.811inch)
Housing Material Aluminum alloy
Torque ≤9.25 g*m (for reference)
Protection IP50
Product Outline Drawing
12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 0
Our Advantages
  • 12,000 square meter production facility with 500+ employees
  • Recognized as "National High and New Technology" enterprise with 69 patents
  • Long-term partnerships with global enterprises and worldwide agents
  • Over 10,000 successful designs for civil, military, commercial and industrial applications
  • Established in 1996 with 20+ years of production and R&D experience
  • Free custom slip ring solutions for various equipment requirements
  • Fast delivery times
12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 1
Typical Applications
12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 2
Company Information
12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 3 12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 4 12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 5 12.7mm Through Hole Slip Ring 6 Circuit 5A Precious Metal Contacts 6
Frequently Asked Questions
What do we do?

We specialize in developing, designing, and manufacturing high quality slip rings, offering comprehensive solutions for rotating systems.

What is a slip ring?

A slip ring is an electromechanical device that enables power and electrical signal transmission between stationary and rotating structures. It enhances mechanical performance, simplifies system operation, and eliminates damage-prone dangling wires in rotating joints.

What kinds of slip rings do we provide?
  • Electrical Slip Rings (capsule, through-hole, miniature)
  • Signal Slip Rings (USB2.0/USB3.0, fiber optic rotary joints, high frequency)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
How do I choose a slip ring?

Selection requires details about your application's operating parameters including total circuits, voltage and current per circuit, operating speed, and mounting type. Contact our engineers for assistance with custom solutions.

Do you provide custom slip rings?

Yes, our engineering team develops tailored solutions for specific requirements. Contact us to discuss your application needs.
