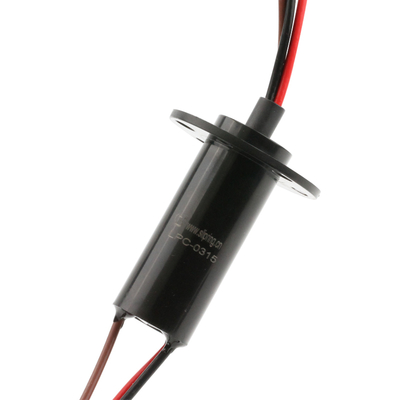

3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC

  • 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC
Τόπος καταγωγής Guangdong, Κίνα
Μάρκα JINPAT
Αριθμό μοντέλου LPC-0330
Ποσότητα παραγγελίας min 1
Τιμή $20

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Κυκλώματα 3 Θερμοκρασία εργασίας -20 ℃ ~ +60 ℃
Βαθμολογία τάσης 380VAC/DC ή υψηλότερη Τρέχουσα βαθμολογία 15A ανά κύκλωμα
Τύπος καλωδίου AWG13 τετράπλευρο σύρμα τεσσάρων κλώνων Μέγιστα κυκλώματα 125
Εξωτερική διάμετρο 22mm ~ 54mm Υλικό επαφής Χρυσός προς χρυσό
Αντίσταση Χαμηλός Διάρκεια ζωής Πολύ
Ενσωμάτωση σήματος Ethernet, USB, RS, LVDS, CAN BUS, FIRE WIRE, SDI, HDMI Ταχύτητα περιστροφής Προαιρετικός
Βαθμός προστασίας Προαιρετικός Υλικό στέγασης Προαιρετικός
Τρέχουσα ικανότητα 30α
Επισημαίνω

3 circuit slip ring 15A

,

wind turbine slip ring 380VAC/DC

,

rotary slip ring with warranty
Περιγραφή προϊόντων
Wind Turbine Slip Ring, Use AWG13 Four-Core Four-Strand Shielded Wire, 3 Wire 30A
Product Attributes
Attribute Value
Type Electronic Accessories
Circuits 3
Working Temperature -20℃~ +60℃
Voltage Rating 380VAC/DC or higher
Current Rating 15A per circuit
Product Description
Bargain Price Only in Alibaba
Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from 22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 0 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 1
Key Features
  • Military standard surface processing
  • Precise construction
  • Gold-to-gold contact
  • Low resistance
  • Long service life
Customization Options
  • Rotating speed
  • Life span
  • Protection grade
  • Number of circuits
  • Current capacity
  • Size
  • Housing material
  • Mass production
Main Applications
  • High speed dome
  • Camera platform
  • Electrical testing equipment
  • Rotary table
  • Manufacturing and control equipment
Our Advantages
Welcome to JINPAT Electronics
Providing free custom slip rings solutions, creating propulsion for your technology
  • With a large plant of over 12,000 square meters and more than 500 employees
  • The company has been awarded the title of "National High and New Technology" and has obtained 69 patents
  • Long-term cooperation with global famous enterprises and agents all over the world
  • With Over 10,000 designs with success in civil, military, commercial and industrial applications
  • Founded in 1996, with more than 20 years of production and R & D experience
  • Providing free custom slip rings solutions, which can be suitable for a variety of equipment
  • Fast delivery
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 2
Typical Application
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 3
Company Information
3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 4 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 5 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 6 3 Circuit Wind Turbine Slip Ring 15A 380VAC/DC 7
FAQ
1. What do we do?
We focus on developing, designing, manufacturing high quality sliprings, and offer various solutions for rotating systems.
2. What is a slip ring?
A slip ring is an electromechanical device that allows the transmission of power and electrical signals from a stationary to a rotating structure. A slip ring can be used in any electromechanical system that requires rotation while transmitting power or signals. It can improve mechanical performance, simplify system operation and eliminate damage-prone wires dangling from movable joints.
3. What kinds of slip rings do we provide
  • Electrical Slip rings (capsule slip ring, through-hole slip ring, miniature slip ring, etc)
  • Signal Slip rings (USB2.0/USB3.0 slip ring, fiber optic rotary joint, high frequency slip ring, etc)
  • Pneumatic/Hydraulic Rotary Unions
  • Custom Slip Rings
  • Large volume series
4. How do I choose a slip ring?
Proper selection of a slip ring solution requires details about your application's operating parameters including total circuits, voltage and amps per circuit, operating speed, and mounting type. If you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started.
5. Do you provide custom slip rings?
Yes, if you are confident that a custom / modified solution is most likely required or need assistance in your selection, contact us to Get Started. Our engineers will come up with perfect solution for your needs.
